Failed 2N3055
Submitted by ben on Fri, 11/05/2010 - 17:10

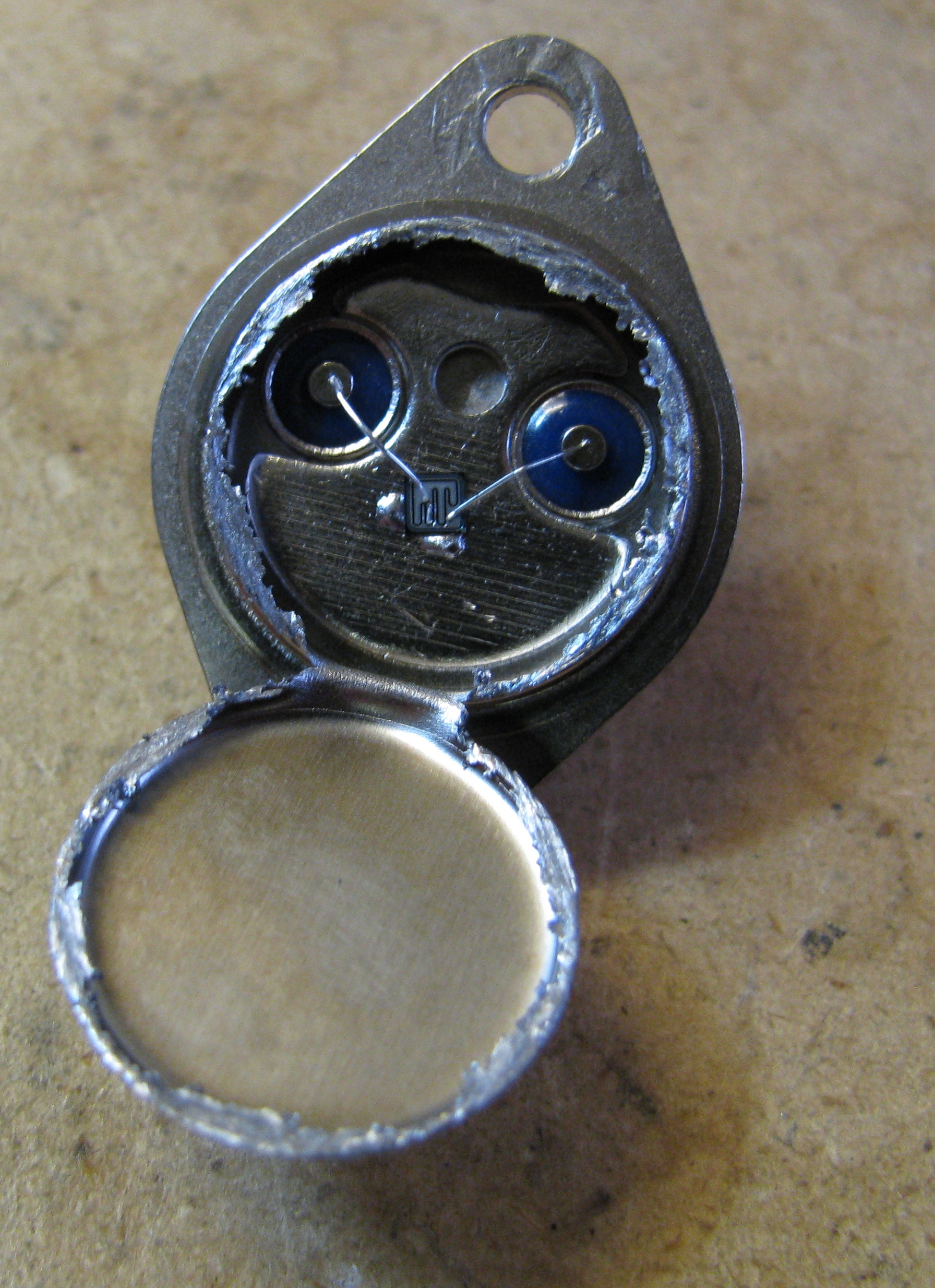

This 2N3055 NPN transistor was in a cheap 3-output power supply. This transistor failed short, resulting in a smoked resistor and 50V on the output! If you look closely at the original image, you can see a melted area on the die.
